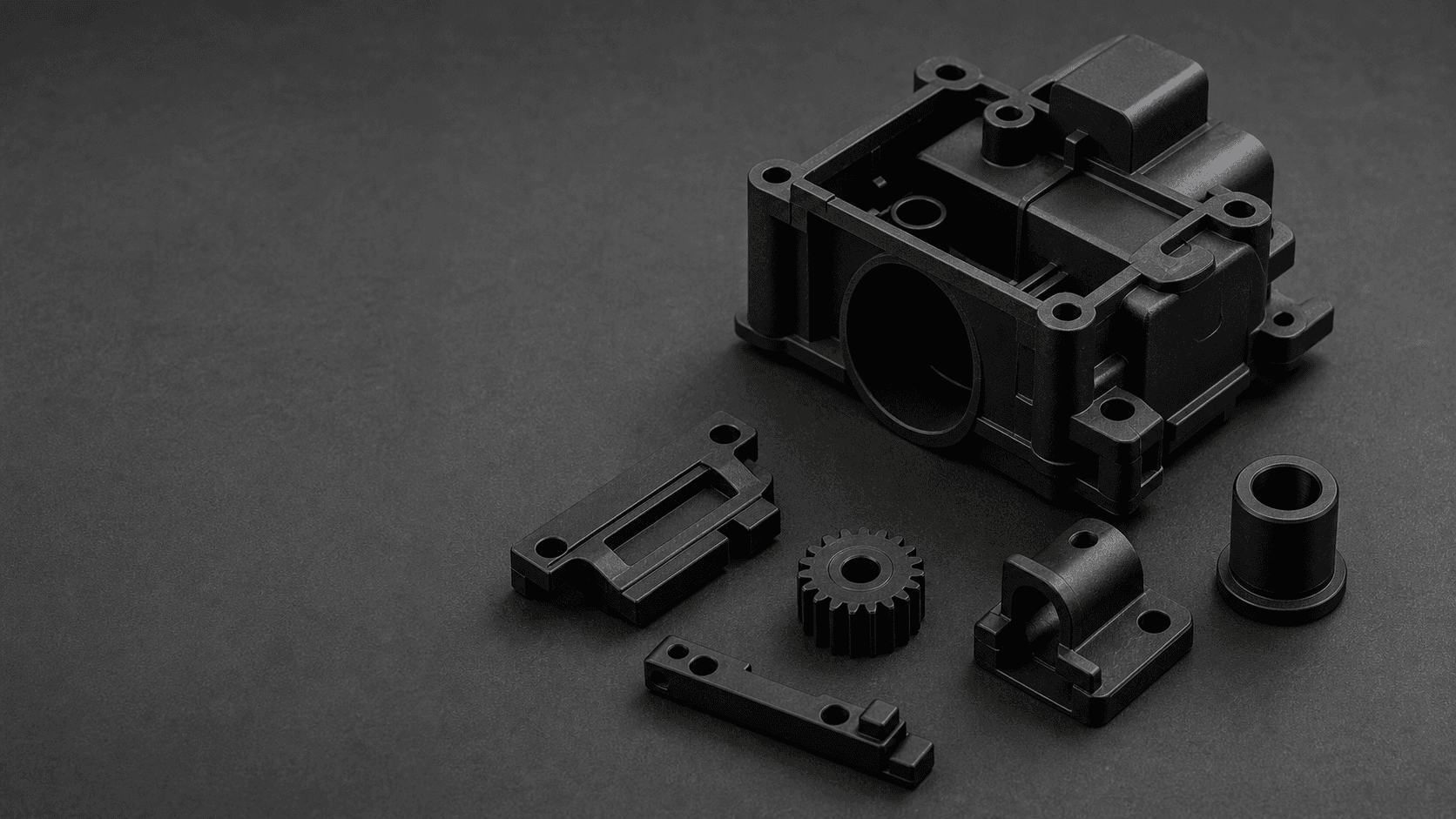

Black precision molded functional plastic components

Static-Control Engineering Plastics

Conductive and Antistatic Plastic Compounds

Compare carbon-nanotube permanent antistatic and carbon-fiber conductive directions across multiple engineering-plastic matrices before requesting grade data or samples.

Explore Grades Discuss Your Application

22Material matrices

44CNT directions

34Carbon-fiber directions

2Modification systems

Series Architecture

One directory, two material technologies

Start with the electrical target and polymer matrix. Final selection still requires the specified test method, molded-part geometry, conditioning, and mechanical-property review.

CNT / Permanent Antistatic

Carbon Nanotube Antistatic Series

Permanent static-control directions designed around non-blooming, non-migrating carbon-nanotube modification and low specific gravity.

Non-blooming and non-migrating modification direction
Low-specific-gravity catalogue positioning
R35 and R610 target bands

CF / Conductive

Carbon Fiber Conductive Series

Carbon-fiber directions for controlled conductivity with a thermal-conductive material review path.

Carbon-fiber conductive modification direction
Thermal-conductive review path
R35 and R68 target bands

CNT Grade Naming

Read the new code in three parts

Descriptive CNT grade codes identify the polymer matrix, modification system, and catalogue target band.

POMPolymer matrix

CNTCarbon nanotube

R3510^3-10^5 band

Cross-Material Grade Directory

Find a charge-control direction

Compare both modification systems, then narrow the list by polymer matrix and target range.

78 matching gradesR35, R68, and R610 describe catalogue target bands. Confirm the test method, units, and molded-part result before approval.

Material Matrix

Conductive & Antistatic POM

4 listed grades

Grade	Material	Technology	Target range	Next step
POM-CNT-R610	POM	CNT Antistatic	10⁶–10¹⁰	Request data
POM-CNT-R35	POM	CNT Antistatic	10³–10⁵	Request data
POM GP8	POM	Carbon Fiber Conductive	10⁶–10⁸	Request data
POM GP3	POM	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic PA6

4 listed grades

Grade	Material	Technology	Target range	Next step
PA6-CNT-R610	PA6	CNT Antistatic	10⁶–10¹⁰	Request data
PA6-CNT-R35	PA6	CNT Antistatic	10³–10⁵	Request data
PA6 GP8	PA6	Carbon Fiber Conductive	10⁶–10⁸	Request data
PA6 GP3	PA6	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic PA66

4 listed grades

Grade	Material	Technology	Target range	Next step
PA66-CNT-R610	PA66	CNT Antistatic	10⁶–10¹⁰	Request data
PA66-CNT-R35	PA66	CNT Antistatic	10³–10⁵	Request data
PA66 GP8	PA66	Carbon Fiber Conductive	10⁶–10⁸	Request data
PA66 GP3	PA66	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic PPA

4 listed grades

Grade	Material	Technology	Target range	Next step
PPA-CNT-R610	PPA	CNT Antistatic	10⁶–10¹⁰	Request data
PPA-CNT-R35	PPA	CNT Antistatic	10³–10⁵	Request data
PPA GP8	PPA	Carbon Fiber Conductive	10⁶–10⁸	Request data
PPA GP3	PPA	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic PPS

4 listed grades

Grade	Material	Technology	Target range	Next step
PPS-CNT-R610	PPS	CNT Antistatic	10⁶–10¹⁰	Request data
PPS-CNT-R35	PPS	CNT Antistatic	10³–10⁵	Request data
PPS GP8	PPS	Carbon Fiber Conductive	10⁶–10⁸	Request data
PPS GP3	PPS	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic ABS

4 listed grades

Grade	Material	Technology	Target range	Next step
ABS-CNT-R610	ABS	CNT Antistatic	10⁶–10¹⁰	Request data
ABS-CNT-R35	ABS	CNT Antistatic	10³–10⁵	Request data
ABS GP8	ABS	Carbon Fiber Conductive	10⁶–10⁸	Request data
ABS GP3	ABS	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic PC

4 listed grades

Grade	Material	Technology	Target range	Next step
PC-CNT-R610	PC	CNT Antistatic	10⁶–10¹⁰	Request data
PC-CNT-R35	PC	CNT Antistatic	10³–10⁵	Request data
PC GP058	PC	Carbon Fiber Conductive	10⁶–10⁸	Request data
PC GP03	PC	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic PC/ABS

4 listed grades

Grade	Material	Technology	Target range	Next step
PC/ABS-CNT-R610	PC/ABS	CNT Antistatic	10⁶–10¹⁰	Request data
PC/ABS-CNT-R35	PC/ABS	CNT Antistatic	10³–10⁵	Request data
PC/ABS GP6	PC/ABS	Carbon Fiber Conductive	10⁶–10⁸	Request data
PC/ABS GP3	PC/ABS	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic PBT

4 listed grades

Grade	Material	Technology	Target range	Next step
PBT-CNT-R610	PBT	CNT Antistatic	10⁶–10¹⁰	Request data
PBT-CNT-R35	PBT	CNT Antistatic	10³–10⁵	Request data
PBT GP5-8	PBT	Carbon Fiber Conductive	10⁶–10⁸	Request data
PBT GP3-3	PBT	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic TPU

4 listed grades

Grade	Material	Technology	Target range	Next step
TPU-CNT-R610	TPU	CNT Antistatic	10⁶–10¹⁰	Request data
TPU-CNT-R35	TPU	CNT Antistatic	10³–10⁵	Request data
TPU GP8	TPU	Carbon Fiber Conductive	10⁶–10⁸	Request data
TPU GP3	TPU	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic ASA

4 listed grades

Grade	Material	Technology	Target range	Next step
ASA-CNT-R610	ASA	CNT Antistatic	10⁶–10¹⁰	Request data
ASA-CNT-R35	ASA	CNT Antistatic	10³–10⁵	Request data
ASA GP6-8	ASA	Carbon Fiber Conductive	10⁶–10⁸	Request data
ASA GP3-3	ASA	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic EVA

2 listed grades

Grade	Material	Technology	Target range	Next step
EVA-CNT-R610	EVA	CNT Antistatic	10⁶–10¹⁰	Request data
EVA-CNT-R35	EVA	CNT Antistatic	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic HIPS

4 listed grades

Grade	Material	Technology	Target range	Next step
HIPS-CNT-R610	HIPS	CNT Antistatic	10⁶–10¹⁰	Request data
HIPS-CNT-R35	HIPS	CNT Antistatic	10³–10⁵	Request data
HIPS GP8	HIPS	Carbon Fiber Conductive	10⁶–10⁸	Request data
HIPS GP3	HIPS	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic PC/PET

4 listed grades

Grade	Material	Technology	Target range	Next step
PC/PET-CNT-R610	PC/PET	CNT Antistatic	10⁶–10¹⁰	Request data
PC/PET-CNT-R35	PC/PET	CNT Antistatic	10³–10⁵	Request data
PC/PET-GP8	PC/PET	Carbon Fiber Conductive	10⁶–10⁸	Request data
PC/PET-GP3	PC/PET	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic PE

4 listed grades

Grade	Material	Technology	Target range	Next step
PE-CNT-R610	PE	CNT Antistatic	10⁶–10¹⁰	Request data
PE-CNT-R35	PE	CNT Antistatic	10³–10⁵	Request data
PE GP8	PE	Carbon Fiber Conductive	10⁶–10⁸	Request data
PE GP3	PE	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic POK

4 listed grades

Grade	Material	Technology	Target range	Next step
POK-CNT-R610	POK	CNT Antistatic	10⁶–10¹⁰	Request data
POK-CNT-R35	POK	CNT Antistatic	10³–10⁵	Request data
POK GP8	POK	Carbon Fiber Conductive	10⁶–10⁸	Request data
POK GP3	POK	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic PP

4 listed grades

Grade	Material	Technology	Target range	Next step
PP-CNT-R610	PP	CNT Antistatic	10⁶–10¹⁰	Request data
PP-CNT-R35	PP	CNT Antistatic	10³–10⁵	Request data
PP GP6-8	PP	Carbon Fiber Conductive	10⁶–10⁸	Request data
PP GP3	PP	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic PPO

4 listed grades

Grade	Material	Technology	Target range	Next step
PPO-CNT-R610	PPO	CNT Antistatic	10⁶–10¹⁰	Request data
PPO-CNT-R35	PPO	CNT Antistatic	10³–10⁵	Request data
PPO-GP8	PPO	Carbon Fiber Conductive	10⁶–10⁸	Request data
PPO GP3	PPO	Carbon Fiber Conductive	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic TPE

2 listed grades

Grade	Material	Technology	Target range	Next step
TPE-CNT-R610	TPE	CNT Antistatic	10⁶–10¹⁰	Request data
TPE-CNT-R35	TPE	CNT Antistatic	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic TPEE

2 listed grades

Grade	Material	Technology	Target range	Next step
TPEE-CNT-R610	TPEE	CNT Antistatic	10⁶–10¹⁰	Request data
TPEE-CNT-R35	TPEE	CNT Antistatic	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic TPV

2 listed grades

Grade	Material	Technology	Target range	Next step
TPV-CNT-R610	TPV	CNT Antistatic	10⁶–10¹⁰	Request data
TPV-CNT-R35	TPV	CNT Antistatic	10³–10⁵	Request data

Material Matrix

Conductive & Antistatic ULDPE

2 listed grades

Grade	Material	Technology	Target range	Next step
ULDPE-CNT-R610	ULDPE	CNT Antistatic	10⁶–10¹⁰	Request data
ULDPE-CNT-R35	ULDPE	CNT Antistatic	10³–10⁵	Request data

Selection Inputs

Define the electrical requirement before the grade

Measurement basisSurface or volume method, units, conditioning, and limits

Part environmentHumidity, grounding, geometry, contact area, and service conditions

Property balanceFlow, impact, stiffness, color, dimensional control, and surface quality

Material Review

Need a cross-material recommendation?

Send the current resin, electrical target, molded-part function, test method, mechanical requirements, and expected volume.

Discuss Your Application View Conductive & Antistatic POM
