POM wear test benchmark

Explore test results for 6 POM grades, with load, run time, process curves and before-and-after specimen photos.

Test results

Compare conditions, run time and end state together. Validate part performance under the intended operating conditions.

— indicates a value not listed on this page.

≈ 2.27 kN · ≈ 165 rpm

5 grades

≈ 2.27 kN · ≈ 165 rpm
Grade	Mass loss (g)	Run time	End state	View record
ENM1040	0.040	11 hCompleted	Completed	View record
ESO102	0.108	11 hCompleted	Completed	View record
ETM100-NM	—	11 hCompleted	Completed	View record
EMS102	0.996	16 min 24 sWorn through	Worn through	View record
EPTL402	1.082	9 min 3 sWorn through	Worn through	View record

≈ 100 N · ≈ 20 rpm

1 grade

≈ 100 N · ≈ 20 rpm
Grade	Mass loss (g)	Run time	End state	View record
EPS055	0.001	4 hCompleted	Completed	View record

Curves & specimen photos

Open a grade to explore its results, images and full test data.

ENM1040

0.040 g · 11 h

Load: 2266.81 N
Speed: 164.9 rpm
End state: Completed
Test date: 2026-01-12

ENM1040 · Test process curve — Test process curveEnlarge

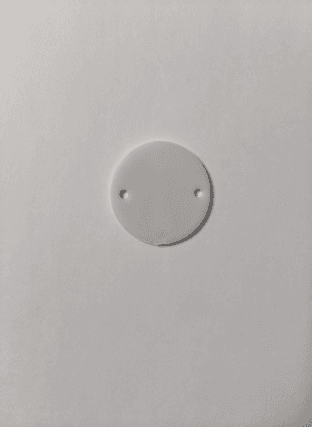

ENM1040 · Before test — Before testEnlarge

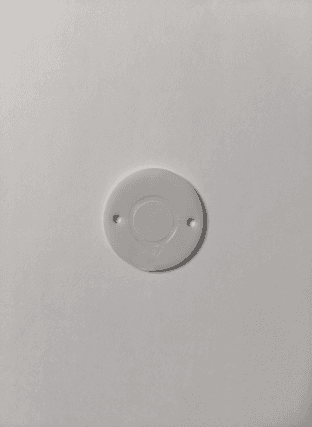

ENM1040 · After test — After testEnlarge

Full test data

Test date: 2026-01-12
Load: 2266.81 N
Speed: 164.9 rpm
Run time: 39600 s
Ambient: 23 °C
Reported friction temperature: 30.4 °C
Reported friction force: 121.96 N
Mass before: 8.348 g
Mass after: 8.308 g
Mass loss: 0.040 g
Report specimen: ENM1040 7#

Record source & method

Internal wear-test record, indexed here by grade and test date. The page locator identifies this entry; it is separate from the original report number.

Page record locator: ENM10402026-01-12
Original report number: Not provided in the public summary
Equipment: Not provided in the public summary
Test method: Not provided in the public summary
Counterface: Not provided in the public summary
Contact geometry: Not provided in the public summary
Lubrication: Not provided in the public summary
Repeat count: Not provided in the public summary

Use this record for initial sample screening. For part validation, share the mating material, contact geometry, load, speed and lubrication conditions.

Ask about ENM1040 See grade details Back to results

ESO102

0.108 g · 11 h

Load: 2266.82 N
Speed: 164.9 rpm
End state: Completed
Test date: 2023-03-30

ESO102 · Test process curve — Test process curveEnlarge

Full test data

Test date: 2023-03-30
Load: 2266.82 N
Speed: 164.9 rpm
Run time: 39600 s
Ambient: 23 °C
Reported friction temperature: 32.4 °C
Reported friction force: 138.30 N
Mass before: 8.476 g
Mass after: 8.368 g
Mass loss: 0.108 g

Record source & method

Internal wear-test record, indexed here by grade and test date. The page locator identifies this entry; it is separate from the original report number.

Page record locator: ESO1022023-03-30
Original report number: Not provided in the public summary
Equipment: Not provided in the public summary
Test method: Not provided in the public summary
Counterface: Not provided in the public summary
Contact geometry: Not provided in the public summary
Lubrication: Not provided in the public summary
Repeat count: Not provided in the public summary

Use this record for initial sample screening. For part validation, share the mating material, contact geometry, load, speed and lubrication conditions.

Ask about ESO102 Back to results

ETM100-NM

11 h

Load: 2266.80 N
Speed: 165.2 rpm
End state: Completed
Test date: 2025-10-15

ETM100-NM · Test process curve — Test process curveEnlarge

ETM100-NM · Before test — Before testEnlarge

ETM100-NM · After test — After testEnlarge

Full test data

Test date: 2025-10-15
Load: 2266.80 N
Speed: 165.2 rpm
Run time: 39600 s
Ambient: 23 °C
Reported friction temperature: 39.4 °C
Reported friction force: 134.36 N

Record source & method

Internal wear-test record, indexed here by grade and test date. The page locator identifies this entry; it is separate from the original report number.

Page record locator: ETM100-NM2025-10-15
Original report number: Not provided in the public summary
Equipment: Not provided in the public summary
Test method: Not provided in the public summary
Counterface: Not provided in the public summary
Contact geometry: Not provided in the public summary
Lubrication: Not provided in the public summary
Repeat count: Not provided in the public summary

Use this record for initial sample screening. For part validation, share the mating material, contact geometry, load, speed and lubrication conditions.

Ask about ETM100-NM Back to results

EMS102

0.996 g · 16 min 24 s

Load: 2267 N
Speed: 165 rpm
End state: Worn through
Test date: 2025-12-10

EMS102 · Test process curve — Test process curveEnlarge

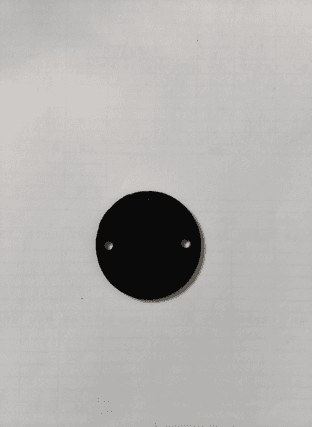

EMS102 · Before test — Before testEnlarge

Full test data

Test date: 2025-12-10
Load: 2267 N
Speed: 165 rpm
Run time: 984 s
Ambient: 23 °C
Reported friction temperature: 37.7 °C
Reported friction force: 319.25 N
Mass before: 8.688 g
Mass after: 7.692 g
Mass loss: 0.996 g

Record source & method

Internal wear-test record, indexed here by grade and test date. The page locator identifies this entry; it is separate from the original report number.

Page record locator: EMS1022025-12-10
Original report number: Not provided in the public summary
Equipment: Not provided in the public summary
Test method: Not provided in the public summary
Counterface: Not provided in the public summary
Contact geometry: Not provided in the public summary
Lubrication: Not provided in the public summary
Repeat count: Not provided in the public summary

Use this record for initial sample screening. For part validation, share the mating material, contact geometry, load, speed and lubrication conditions.

Ask about EMS102 See grade details Back to results

EPTL402

1.082 g · 9 min 3 s

Load: 2266.62 N
Speed: 164.1 rpm
End state: Worn through
Test date: 2024-08-24

EPTL402 · Test process curve — Test process curveEnlarge

Full test data

Test date: 2024-08-24
Load: 2266.62 N
Speed: 164.1 rpm
Run time: 543 s
Ambient: 23 °C
Reported friction temperature: 40.8 °C
Reported friction force: 263.01 N
Mass before: 9.175 g
Mass after: 8.093 g
Mass loss: 1.082 g

Record source & method

Internal wear-test record, indexed here by grade and test date. The page locator identifies this entry; it is separate from the original report number.

Page record locator: EPTL4022024-08-24
Original report number: Not provided in the public summary
Equipment: Not provided in the public summary
Test method: Not provided in the public summary
Counterface: Not provided in the public summary
Contact geometry: Not provided in the public summary
Lubrication: Not provided in the public summary
Repeat count: Not provided in the public summary

Use this record for initial sample screening. For part validation, share the mating material, contact geometry, load, speed and lubrication conditions.

Ask about EPTL402 See grade details Back to results

EPS055

0.001 g · 4 h

Load: 99.72 N
Speed: 20.4 rpm
End state: Completed
Test date: 2026-04-29

EPS055 · Test process curve — Test process curveEnlarge

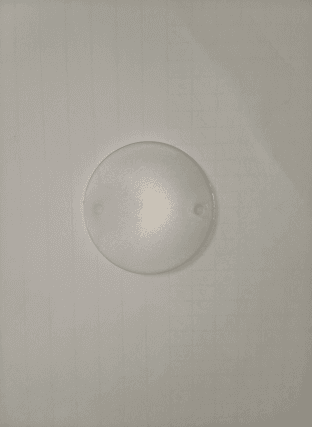

EPS055 · Before test — Before testEnlarge

Full test data

Test date: 2026-04-29
Load: 99.72 N
Speed: 20.4 rpm
Run time: 14400 s
Ambient: 23 °C
Reported friction temperature: 23.4 °C
Reported friction force: 17.83 N
Mass before: 8.498 g
Mass after: 8.497 g
Mass loss: 0.001 g

Record source & method

Internal wear-test record, indexed here by grade and test date. The page locator identifies this entry; it is separate from the original report number.

Page record locator: EPS0552026-04-29
Original report number: Not provided in the public summary
Equipment: Not provided in the public summary
Test method: Not provided in the public summary
Counterface: Not provided in the public summary
Contact geometry: Not provided in the public summary
Lubrication: Not provided in the public summary
Repeat count: Not provided in the public summary

Use this record for initial sample screening. For part validation, share the mating material, contact geometry, load, speed and lubrication conditions.

Ask about EPS055 Back to results
